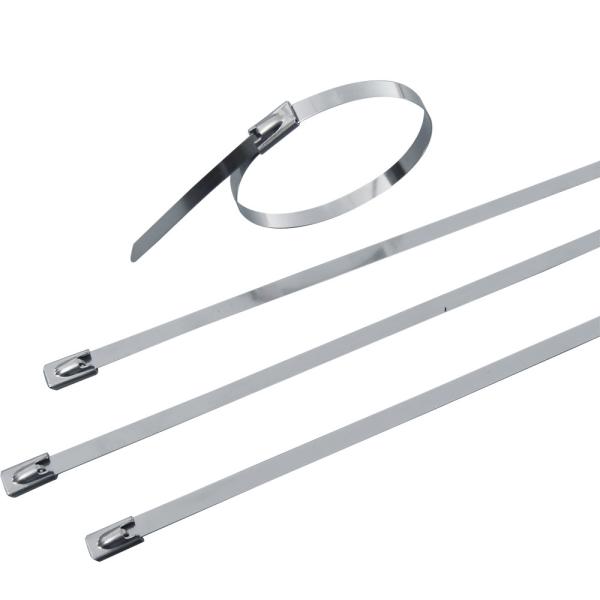

Fireproof ROHS Stainless Steel Cable Zip Ties - UV Resistant
Product Feature
Uncoated version, for high temperature applications and high tensile strength,Easy install.
Applications:
Many suitable for all kinds of Engineering packaging, shipping, power plants, docks, bridges, equipment etc, such as oil pipelines,shipbuilding, power facilities, highway, urban road, urban infrastructure, machinery manufacturing, electrical power,industrial facilities, pipeline industry, fire hose and some need bundled and fixed place, etc
Description
1 , these stainless steel cable ties work almost identically to plastic ties; the difference is that the metal ties use a ball bearing to lock the tie in place, and longer life than plastic ties.
2 , An upside is that one doesn't have to worry about the tie melting in a high temperature setting. Another upside is that you can bind to a much higher load than with (similarly-sized) plastic ties
Advantage: Stainless Steel Cable Zip Ties is very strong with round safe edge,longer life,wishstand high heat,fireproof,UV-resistand.
| Part No. | Approx. length.
mm(inch) | Approx. width
mm(inch) | Thickness
mm | Max. Bundle Dia.
mm(inch) | Min.loop
tensile strength
N(lbs) | Pcs/Bag |
| JHCN-4.6 x 150 | 150(5.9) | 4.6(0.181) | 0.25 | 37(1.46) | 600(135) | 100 |
| JHCN-4.6 x 200 | 200(7.87) | 50(1.97) |
| JHCN-4.6 x 250 | 250(9.84) | 63(2.48) |
| JHCN-4.6 x 300 | 300(11.8) | 76(2.99) |
| JHCN-4.6 x 350 | 350(13.78) | 89(3.5) |
| JHCN-4.6 x 400 | 400(15.75) | 102(4.02) |
| JHCN-4.6 x 450 | 450(17.72) | 115(4.53) |
| JHCN-4.6 x 500 | 500(19.69) | 128(5.04) |
| JHCN-4.6 x 550 | 550(21.65) | 141(5.55) |
| JHCN-4.6 x 600 | 600(23.62) | 154(6.06) |
| JHCN-7.9 x 150 | 150(5.9) | 7.9(0.311) | 0.25 | 37(1.46) | 800(180) | 100 |
| JHCN-7.9 x 200 | 200(7.87) | 50(1.97) |
| JHCN-7.9 x 250 | 250(9.84) | 63(2.48) |
| JHCN-7.9 x 300 | 300(11.8) | 76(2.99) |
| JHCN-7.9 x 350 | 350(13.78) | 89(3.5) |
| JHCN-7.9 x 400 | 400(15.75) | 102(4.02) |
| JHCN-7.9 x 450 | 450(17.72) | 115(4.53) |
| JHCN-7.9 x 500 | 500(19.69) | 128(5.04) |
| JHCN-7.9 x 550 | 550(21.65) | 141(5.55) |
| JHCN-7.9 x 600 | 600(23.62) | 154(6.06) |
| JHCN-7.9 x 650 | 650(25.59) | 167(6.57) |
| JHCN-7.9 x 700 | 700(27.56) | 180(7.09) |
| JHCN-7.9 x 750 | 750(29.53) | 191(7.52) |
| JHCN-7.9 x 800 | 800(31.5) | 193(7.59) |
| JHCN-12 x 150 | 150(5.9) | 12(0.472) | 0.25 | 37(1.46) | 1200(270) | 100 |
| JHCN-12 x 200 | 200(7.87) | 50(1.97) |
| JHCN-12 x 250 | 250(9.84) | 63(2.48) |
| JHCN-12 x 300 | 300(11.8) | 76(2.99) |
| JHCN-12 x 350 | 350(13.78) | 89(3.5) |
| JHCN-12 x 400 | 400(15.75) | 102(4.02) |
| JHCN-12 x 450 | 450(17.72) | 115(4.53) |
| JHCN-12 x 500 | 500(19.69) | 128(5.04) |
| JHCN-12 x 550 | 550(21.65) | 141(5.55) |
| JHCN-12 x 600 | 600(23.62) | 154(6.06) |
| JHCN-12 x 650 | 650(25.59) | 167(6.57) |
| JHCN-12 x 700 | 700(27.56) | 180(7.09) |
| JHCN-15 x 200 | 200(7.87) | 15(0.59) | 0.4 | 50(1.97) | 1500(337) | 100 |
| JHCN-15 x 250 | 250(9.84) | 63(2.48) |
| JHCN-15 x 300 | 300(11.8) | 76(2.99) |
| JHCN-15 x 350 | 350(13.78) | 89(3.5) |
| JHCN-15 x 400 | 400(15.75) | 102(4.02) |
| JHCN-15 x 450 | 450(17.72) | 115(4.53) |
| JHCN-15 x 500 | 500(19.69) | 128(5.04) |
| JHCN-15 x 550 | 550(21.65) | 141(5.55) |
| JHCN-15 x 600 | 600(23.62) | 154(6.06) |
| JHCN-15 x 650 | 650(25.59) | 167(6.57) |
| JHCN-15 x 700 | 700(27.56) | 180(7.09) |
| JHCN-15 x 750 | 750(29.53) | 191(7.52) |
| JHCN-15 x 800 | 800(31.5) | 193(7.59) |
| JHCN-15 x 1000 | 1000(39.37) | 206(8.11) |
